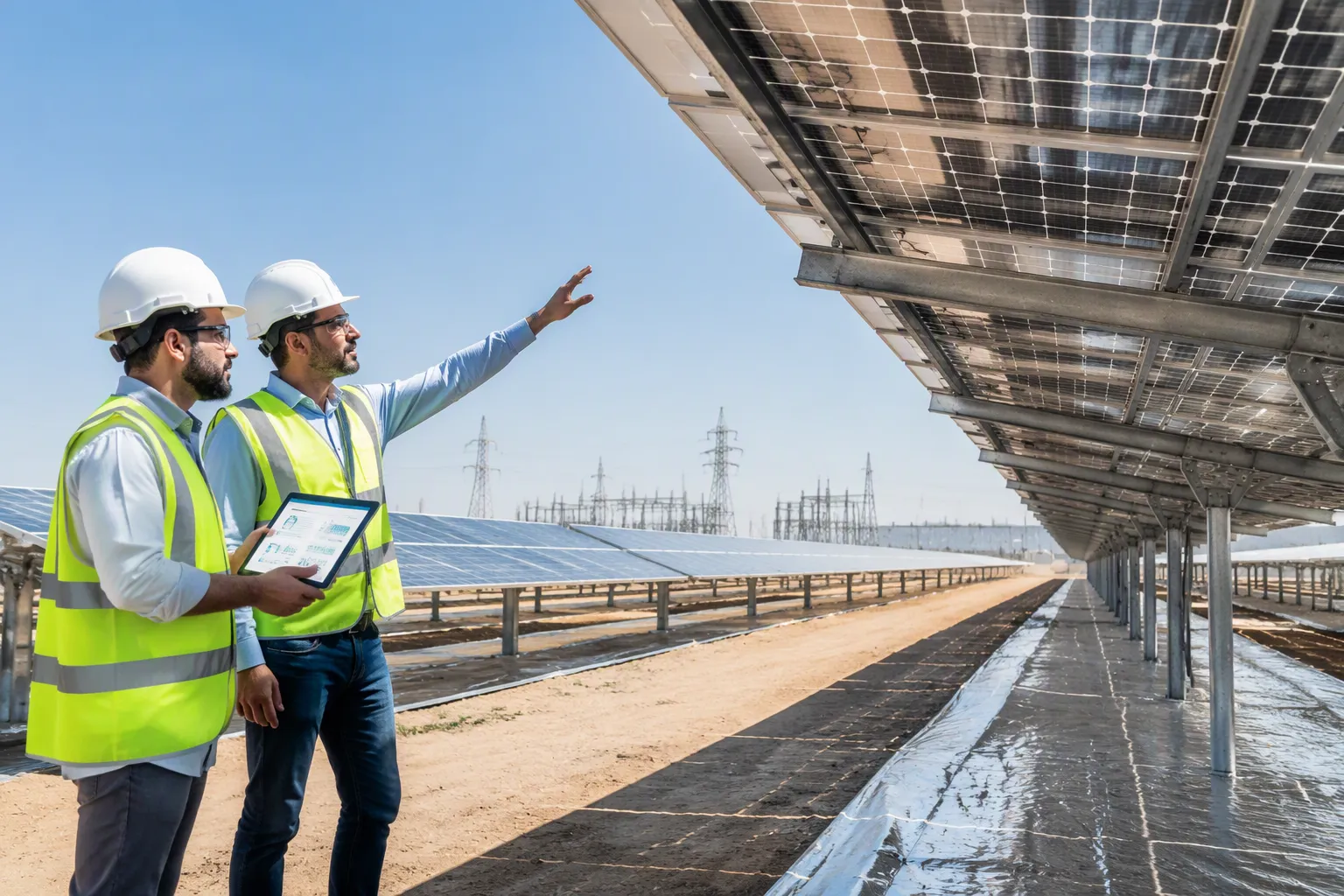

    Bifacial Solar Modules for Utility Projects: Complete Installation and ROI Guide

    Oct 22, 2026
    Bifacial Solar Modules now anchor most utility ground-mount projects, yet installation practice and ROI math still decide whether they pay off. You need defensible numbers, not marketing claims. Remember one rule: bifaciality factor is not energy gain. Real gains are site- and design-specific, typically 8%–15% under optimal conditions. Monofacial remains a valid fit for some sites.   Key Takeaways Bifacial gain varies by site. Test your albedo, height, tilt, and spacing to find real energy gain. Design matters. Use trackers and proper spacing to boost rear-side light and lower costs. Model your ROI. Compare incremental cost and energy to see if bifacial pays off for your project.   What Bifacial Solar Modules Are and How They Differ Bifacial solar modules collect irradiance on both faces and convert light hitting the rear side into additional power. A transparent backsheet or dual-glass construction lets reflected light reach the rear cells. You gain energy from the same module area, mounting structure, and land footprint. That dual-face collection is the entire premise of the technology.   Bifaciality Factor vs. Energy Gain The bifaciality factor describes the module alone. It is the ratio of rear-side nominal efficiency to front-side nominal efficiency, measured under standard test conditions: Bifaciality factor (%) = [η_rear / η_front] × 100 A module with 350 W rear test power and 500 W front test power has a bifaciality of 350/500 = 70%. The rear face produces 70% of the front's capability under test light. This is a datasheet characteristic, not a field result. Energy gain is a system-level increment. It depends on how much light actually reaches the rear face at your site. ArcVera Renewables reports an average gain of 3% to 10%, and up to 30% depending on albedo, structure elevation height, and ground cover ratio. An 80% bifaciality rating never means 80% more energy.   Utility-Scale Fit and Tradeoffs Bifacial solar modules are now the de facto choice for utility ground-mount projects. Dual-glass construction and falling price premiums made them the default specification for new builds. Monofacial modules remain a valid fit for low-albedo ground or budget-constrained sites. Match the module to the site, not to a trend.   Site and Design Factors That Drive Performance Rear-side irradiance is not a fixed property of the module. Four site and design variables jointly determine how much reflected light reaches the back face: ground albedo, mounting height, tilt, and row spacing. Change one and the others shift in response.   Albedo, Height, Tilt, and Spacing Ground albedo sets the ceiling on reflected light. Fresh snow approaches an albedo near one in the visible region, while deep clean ocean water sits close to zero. Grass typically falls in the 0.15–0.25 range, light gravel and sand in the 0.30–0.45 range, and white membranes above 0.60. Moisture, aging, soiling, and sun angle all shift these values over the project life. Mounting height controls how much of that reflected light the rear face actually sees. Clearance below 0.5 m yields limited rear irradiance, with gains often under 5%. A minimum of roughly 0.8–1.0 m is recommended, and 1.2–2.0 m is optimal depending on module size and tilt. Taller posts widen the sunlit ground patch but raise wind loads and structural cost, so returns flatten quickly over dark ground. Tilt and row spacing interact with albedo and height. A slightly reduced tilt can raise rear exposure while marginally lowering front capture. Insufficient row spacing causes rear-side shading from adjacent rows, and optimal bifacial spacing typically runs 10%–30% larger than monofacial. Lower ground coverage ratio generally raises rear irradiance, while higher GCR packs more capacity per acre and compresses bifacial gain.   Factor Effect on rear-side irradiance Ground albedo Higher albedo substantially raises rear-side irradiance Mounting height Gains rise with clearance, then flatten; taller posts raise cost Tilt Optimum often differs from monofacial; slightly reduced tilt can help Row spacing Insufficient spacing causes rear-side shading from adjacent rows   Mounting and Electrical Design Tracker configurations elevate modules and reduce rear-side shading, conditions that directly enhance bifacial gain. Horizontal single-axis trackers with bifacial modules have become the industry standard for lowest LCOE. Single-axis trackers deliver 15–25% higher energy yield than fixed-tilt systems, with capacity factors typically 24–32%. Two-modules-in-portrait configurations add reduced rear shading, higher GCR, and fewer foundations per MW. String sizing cannot simply follow traditional calculations. Extra rear-side current shifts voltage and current behavior across the day, so engage designers experienced with bifacial-specific electrical requirements. Account for peak bifacial output when selecting controllers and inverters. Conventional irradiance measurements miss rear-side contributions, so monitor both front and rear irradiance plus module temperatures during the first year to establish a baseline and verify expected gains.   Modeling, Installation, and Fit Assessment Modeling Yield with Defensible Assumptions Build your yield case on three tiers of evidence. First, anchor assumptions in technical references: NREL and IEC standards, PVGIS irradiance data, and SAM simulation runs. Second, pull module parameters from the datasheet, including bifaciality, temperature coefficient, and maximum series fuse rating. Third, label every scenario model clearly as an estimate with stated inputs. Reference points help you sanity-check results. Published gains for bifacial solar modules reach 10–30% under optimal conditions, and a 5–8% upfront cost premium is a common planning figure. Treat both as ranges to test, not guarantees. Your albedo, height, and spacing assumptions drive the outcome.   Installation Sequence and Quality Checks Follow a fixed sequence, with a checkpoint at each stage: Survey the site and document ground albedo, rear-face obstructions, and snow patterns. Confirm design and current calculations against the correct Isc for conductors, fuses, inverters, and MLPE. Install foundations per the stamped structural design, holding post heights to plan. Set racking height, tilt, and row spacing, measuring clearance at the lowest module edge. Mount modules in approved clamp zones, inspecting for chipped edges or cracks at delivery. Route wiring away from the rear face, securing leads along rails or frame edges. Commission with polarity, insulation resistance, and I-V curve tracing, adding rear-side irradiance sensors on larger projects. Clamp discipline protects the glass. Match clamp length and position to the installation manual, confirm the approved mounting orientation, and torque to spec, since overtightening can crack glass and clamping outside approved zones can void the warranty. Ask for mechanical test data on the specific module and racking combination: Kiwa PVEL documented a Brazilian tracker site where over 50% of 2 mm glass-glass modules cracked within nine months.   Sourcing Bifacial Solar Modules for Utility Projects Specifications Buyers Should Compare Compare modules at the exact model level, not the brand level. A technology label is not evidence for the module you will actually receive. Request the current datasheet, the test method, and the supporting report before you place a bifaciality value into an energy model. Specification to compare Relevance to utility bifacial sourcing Rated power Determines module output Efficiency Affects power density and land utilization Bifaciality Relevant to rear-side generation Temperature coefficient Important in hot climates Degradation Influences long-term output Dimensions and weight Affect mounting, handling, and transport Voc / Isc Required for electrical system design Mechanical load Important for structural design Warranty Long-term risk consideration Certifications Market and project compliance Availability and price Affect schedule and economics Review first-year degradation, annual degradation, and end-of-warranty guaranteed output for the exact model. Compare temperature coefficients of power across your shortlist, especially for hot climates, rather than relying only on STC efficiency. Confirm tracker compatibility and approved mechanical loads before you commit.   Evaluating Manufacturers and Suppliers Verify the supplier before you negotiate price. Follow a fixed sequence: Check the business license in China's official registry to confirm legal identity and rule out trading companies posing as factories. Validate TÜV, CE, IEC 61215, and IEC 61730 certificates directly with the issuing laboratories. Request a video tour or an in-person visit to confirm real production lines. Send samples to an independent laboratory to verify bifacial performance claims. Contact 3–5 recent buyers about quality consistency and warranty handling. Run a pre-shipment inspection through SGS, Bureau Veritas, or TÜV. Certification alone no longer satisfies utility procurement. Pair it with bill-of-materials-specific bankability testing and ongoing production oversight. Confirm who handles warranty communication, which documents you must submit, and how technical escalations move. For a single accountable partner, PNG Solar supplies bifacial solar modules and utility-scale PV modules alongside full solar project solutions, from specification through delivery.   Calculating ROI for Bifacial Utility Projects Cost, Gain, and LCOE Formulas Start with four plain relations. Incremental cost = bifacial total upfront investment minus monofacial total upfront investment. Incremental energy = annual bifacial production minus annual monofacial production, summed across the project life after applying the degradation rate. LCOE delta = bifacial LCOE minus monofacial LCOE, where LCOE = total lifetime cost / total lifetime energy in MWh. Simple payback in years = incremental cost / annual revenue from incremental energy, with revenue = incremental MWh × PPA price. Run each relation on your own inputs. Do not borrow a published uplift percentage.   Scenario Analysis and Payback The table below states the assumptions for a 5 MW DC comparison against a mono PERC baseline. Assumption Value used in model Location and irradiance High-solar-irradiance area Ground surface Light-colored gravel, ~30% albedo System capacity 5,000 kW for both systems Baseline Year 1 production (mono PERC) ~7,500 MWh Bifacial gain Conservative 9% (675 MWh) PPA price ~$57/MWh Degradation rate ~0.5% per year Module cost ~$0.75/W mono, ~$0.90/W bifacial Inverter cost $300,000 for both Mounting and racking $750,000 vs. $825,000 Labor and installation $600,000 vs. $650,000 Other BOS and soft costs $1,100,000 for both Total upfront investment $6,500,000 vs. $7,375,000 System lifetime 25 years Incremental cost here is 875,000, roughly 13.5% higher. Year 1 incremental revenue is 675 MWh ×57/MWh, about $38,475. Divide $875,000 by that figure and simple payback lands near 23 years before degradation — a marginal case at this gain level. Studies cite 15–17% gains as possible on gravel, which would shorten payback substantially. Now vary albedo. Low-albedo ground such as dark soil or water-adjacent sites suppresses rear irradiance, and payback may exceed the asset life. Medium albedo, the gravel case above, sits near break-even. High albedo, such as snow or white membrane, pushes gain toward the upper published range and delivers the strongest payback. Interpret results as a range, not a single number, and stress-test the albedo assumption first. The FAQ section should answer discrete buyer questions rather than restate these calculations.   Prove bifacial value at your site. Model albedo, mounting design, and electrical configuration together, then link them to energy yield. Compare incremental cost against modeled incremental energy, and translate the result into LCOE and payback under stated assumptions. Verify datasheets, bifaciality ratings, temperature coefficients, certifications, and supplier delivery capability before you commit. Bifacial Solar Modules now lead utility-scale PV, and PNG Solar supports your project with utility-scale modules and complete solar project solutions.   FAQ Do bifacial modules always outperform monofacial modules? No. Rear-side gain depends on albedo, mounting height, tilt, and spacing. Low-albedo ground can suppress the gain below the upfront cost premium. Match the module to your site conditions. How do you verify a manufacturer's bifaciality claim? Request the current datasheet, the test method, and the supporting report. Send samples to an independent laboratory. Confirm certificates directly with the issuing body before you trust the rating. What ground albedo justifies bifacial modules? Light gravel, sand, snow, and white membrane surfaces reflect enough light to support bifacial gains. Dark soil and water-adjacent ground reflect little. Model your actual surface before you commit.
